0.4 MPa Temperature Test Chamber With Bottom Plate Size 560x410mm

Safety Test Equipment With Bottom Plate Size 560x410mm Battery Drop Test Machine

Product Name: Drop Tester

Model: JD-6001

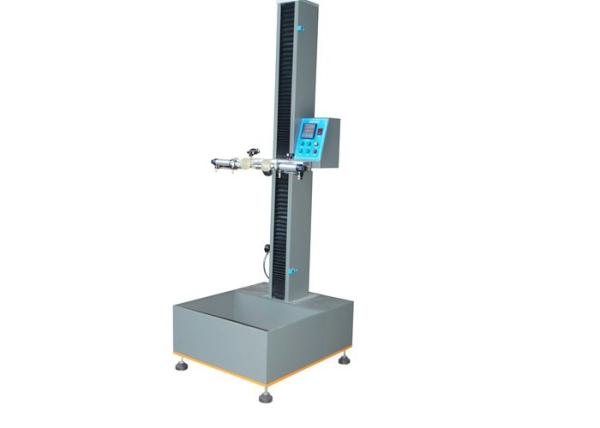

First, the product name: battery drop test machine

Second, the product model: JD-6001

Third, the product overview:

This machine is suitable for mobile phone (mobile phone), walkie-talkie, electronic dictionary, building intercom, CD/MD/MP3 and other small consumer electronic products and parts free fall test; the machine uses pneumatic structure, will be tested Place it in a special fixture (adjustable stroke), press the down button, the cylinder is released, the test piece will be free fall test, the drop height can be adjusted up and down, the altimeter can know the drop height of the test piece, the key components of the machine Reliable performance, a variety of drop floor available.

Fourth, meet the criteria:

GB/T 31485-2015, GB/T 31241-2014, UN38.3, IEC62133, QC/T743-201X, GB/T 8897.4-2008

V. Equipment technical parameters:

1. Maximum weight of test piece: 2kg±100g

2, drop height: 400 ~ 1500mm (adjustable)

3, drop height scale: accuracy 1mm

4, clamping method: pneumatic clamp

5, falling floor media: acrylic plate, stainless steel plate (customer-supplied)

6, the drop method: free fall

7, the bottom plate size: 560x410mm

8, the use of air pressure: 0.4 MPa

9, machine size: 700x900x1650mm

10, weight: 80kg

11, power: 1 ∮, 220V, 3A
