Test Power Supply 2100w Wire Bending Leakage Leakage Tracking Test Equipment

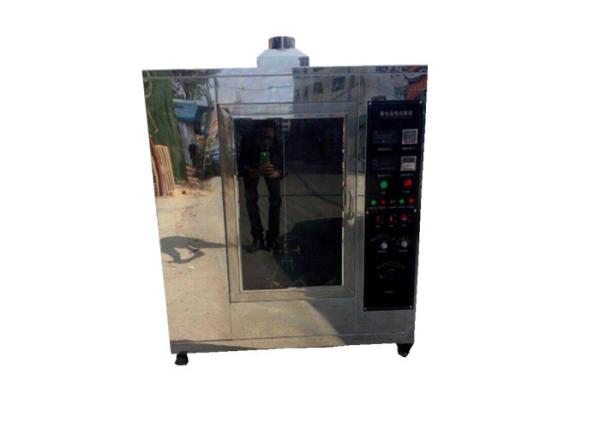

Leakage tracking test machine JD-3054
product description:
●The leakage tracking test is to apply a set voltage between the two electrodes on the surface of the solid insulating material, and drop the specified concentration of liquid at a certain height to evaluate the leakage resistance of the surface of the solid insulating material under electric field and contaminated medium. Trace ability.
●Applicable to lighting equipment, low-voltage electrical appliances, room electrical appliances, machine tool electrical appliances, for insulating materials, engineering plastics, electrical connectors.
Technical Parameters:
1. Studio volume: 0.1 m3 0.5m3 0.75 m3
2. Electrode: length ≥ 15mm; width 6mm ± 0.1; thickness 3mm ± 0.1
Material: Platinum, the edge of one end of the electrode is cut into a 300-angle bevel.
3, electrode distance: 4.0mm ± 0.1
4. The force applied by the electrode to the surface of the sample is: 1.0N ± 0.5
5, test voltage: 100V-600V can be set
6, test power: 2100W
7. When the short-circuit current is 1.0A, the drop value at 600V voltage is ≤50V.
8, the starting point judgment: 0.5A or more current lasts 2S
9, drip device:
①Solution drip interval 30s
② Droplet height: 30~40mm
③ Drop size: 20mm3~23mm3
④Test solution
10, with force measuring device:
(0.1 ± 0.002)% by mass of ammonium chloride (NH4CZ) was diluted with distilled water.
